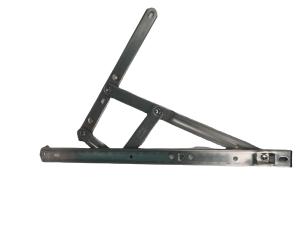

Premium 304 Stainless Steel Circular Groove Friction Hinge Door & Window Accessories for Aluminum Windows
Designed for aluminum windows and doors, this high-performance friction hinge combines durability with precision engineering. Crafted from premium 304 stainless steel, it offers exceptional resistance to corrosion, rust, and daily wear, making it ideal for both indoor and outdoor applications. The circular groove design enhances friction stability, allowing smooth and silent operation while maintaining precise positioning of windows/doors at any open angle. Its robust structure ensures long-term reliability, even in high-frequency use scenarios. Engineered to meet strict quality standards, this hinge is a perfect accessory for modern aluminum window systems, delivering seamless functionality and aesthetic integration.
Quick Details
Material: Premium 304 stainless steel
Type: Circular groove friction hinge
Application: Aluminum windows and doors
Key Features:
Corrosion-resistant & rust-proof
Smooth, silent operation with precise positioning
Durable structure for high-frequency use
Circular groove design for enhanced friction stability
Advantages:
Long-lasting performance in various environments
Easy installation and maintenance
Compatible with modern aluminum window systems
Quality Standard: Meets international durability and safety requirements
Specification
| 13.5 Square slot raised four-link stainless steel upper suspension brace hinge series Installation dimension (unit :mm) | | | | | | | | | |
| specification | A | B | E | F | G | H | I | J | K L M N |
| 10'' | 258 | 251 | | 145 | 44 | 30 | 200 | 190 | 112 58 38 |
| 12'' | 301 | 293 | 210 | 181 | 44 | 30 | 175 | 135 | 58 38 |
| 14'' | 348 | 339 | 222 | 193 | 44 | 30 | 202 | 160 | 58 38 |
| 16'' | 402 | 394 | 227 | 198 | 44 | 30 | 236 | 195 | 60 42 |
| 18'' | 454 | 445 | 222 | 193 | 44 | 30 | 256 | 216 | 58 38 |
| 20'' | 499 | 490 | 260 | 231 | 44 | 30 | 298 | 246 | 58 38 |
| 22'' | 551 | 542 | 268 | 239 | 44 | 30 | 329 | 287 | 216 93 58 38 |
| 24'' | 598 | 589 | 274 | 245 | 44 | 30 | 373 | 331 | 249 135 60 42 |
| | Aluminium window specification | | | |
| specification | Maximum window height (mm) | Maximum window width (mm) | Material weight (kg) | Opening Angle |
| 10'' | 900 | 400 | 20 | ±87° |
| 12'' | 900 | 500 | 25 | ±87° |
| 14'' | 1000 | 600 | 28 | ±87° |
| 16'' | 1200 | 700 | 30 | ±87° |
| 18'' | 1200 | 800 | 35 | ±87° |
| 20'' | 1200 | 900 | 38 | ±87° |
| 22'' | 1200 | 1000 | 42 | ±87° |
| 24'' | 1200 | 1200 | 45 | ±87° |
